UTGT252520 -
Introduction

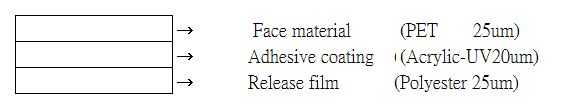

25#PET Film UV tapeCode nameUTGT2525201.Structure.jpg)
2.Specification Remark Tape thickness (um) 45 Without release film Face material (um) PET/25 Material/Thickness ColorWhiteAdhesive layer(um) Acrylic/20 Material/Thickness Adhesion
(g/25mm)
Before UV800±100Conforms to JIS Z 0237(1)After UV(2) 30±10
(1) JIS Z 0237锛歅eeling speed=300mm/min,Peeling angle=180 deg.Adherent=SUS 304.(2)UV irraditaion:Luminance=75mW/cm²,Quantity of light=500mJ/cm² UV irradiation should bs satisfied the following conditions in order to ensure the standard value.
The Last锛QTMT255020 acid tape
The Next锛UTGT252510
